Specifications
Ambient Conditions
| Ambient temperature | 10℃~40℃ |
| Relative humidity | 30%~75% |
| Atmospheric | 70~106kPa |

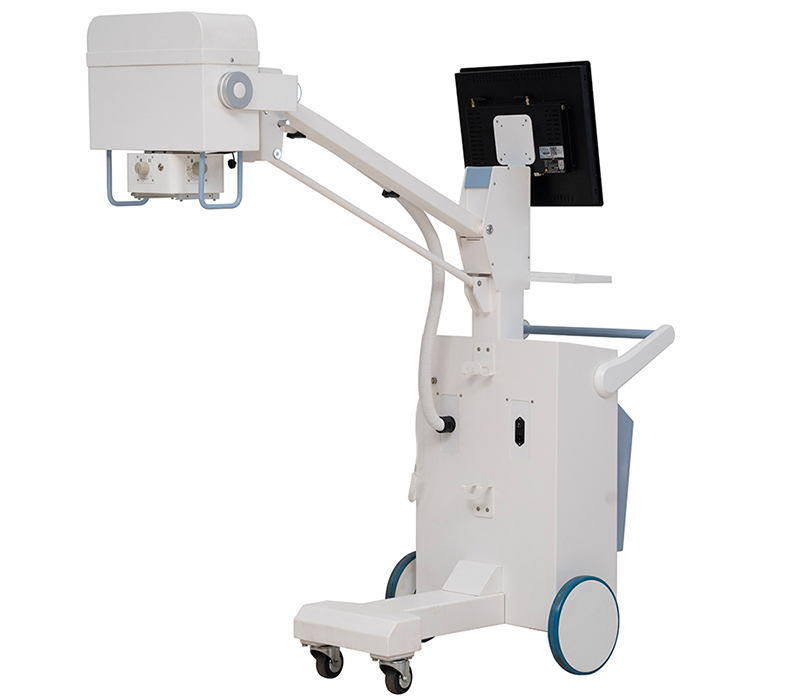

Portable Monoblock X-ray Unit
| Output power | 5.0KW |
| Frequency | ≧30KHZ |
| Current | 10~100mA |
| Voltage | 40~120KV |
| mAs | 0.1~100mAs |
| Exposure time | 1-2000ms |
| Intelligent protection system | It has self-protection system. It will give an alarm and check fault code. |
| Power type | 220v±10% 50Hz/60Hz |
X-ray detector (Flat Panel Detector)
| Type | Amorphous Silicon |
| Scintillator | Cesium Iodide |
| Active Area | 14x17Inch |
| Pixel Matrix | 2304 × 2800 |
| Pixel Pitch | 150um |
| A/D Conversion | 16bits |
| DQE | ≧70% |
| Spatial Resolution | 3.4Lp/mm |
| Acquisition time | ≤2S |
| Battery Autonomy (h) | 5 |
| WIFI | 2.4G and 5G IEEE802.11 a/b/g/n/ac |
| Ingress Protection | IPX1 |
Collimator
| Type | Manual Collimator |
| Max. Window | 440mm×440mm(SID=100cm) |
| Lamp | AC/DC24V、5W |
| Lamp timer | Automatic illumination with timer for lamp(30S) |
| Inherent filtration | 1.0mmAl |
| Illuminant | LED |
Workstation
| All-in-one PC | 23.8Inch |
| CPU | ≥2.0GHz |
| Memory | ≥8GB |
| HDD | ≥500GB |
| DICOM3.0 | Query for integration with any PACS |
| Functions | Image acquisition function |
| Automatically obtain patient information from the hospital’s HIS system or RIS system or establish local medical records. | |
| Setting of exposure parameters: setting of kV, mA, mAs and ms. | |
| Image processing function | |
| Automatic window width and window level adjustment, ROI window width and window level adjustment, gray scale transformation, and parallel display of single or multiple images | |
| Image zooming function: most suitable for images, zoom in, zoom out, local zoom in and actual size | |
| Image rollover: left and right rollover, up and down rollover, 90° rollover | |
| Image filtering: noise reduction, bone level, tissue details, contrast, etc. | |
| Marking function: text marking, arrow and other marking and deletion | |
| Image measurement: linear measurement, Angle measurement and rectangle measurement | |
| Image adjustment: window level gain, window width gain, grayscale stretch, negative reversal, sharpening, enhancement strength, etc. | |
| Other functions: image movement, label selection, image clipping and other functions. | |
| Image management function | |
| DICOM function and database management: the system supports the standard DICOM3.0 function, which can transfer data to other medical imaging workstations. | |
| Case management function | |
| Medical records can be stored, retrieved and inquired, and cases can be deleted, cleaned and browsed. | |
| Function of printing diagnostic report: the function of printing diagnostic report is added. The built-in diagnostic report template and knowledge base of the system can output integrated report of text and text. |
