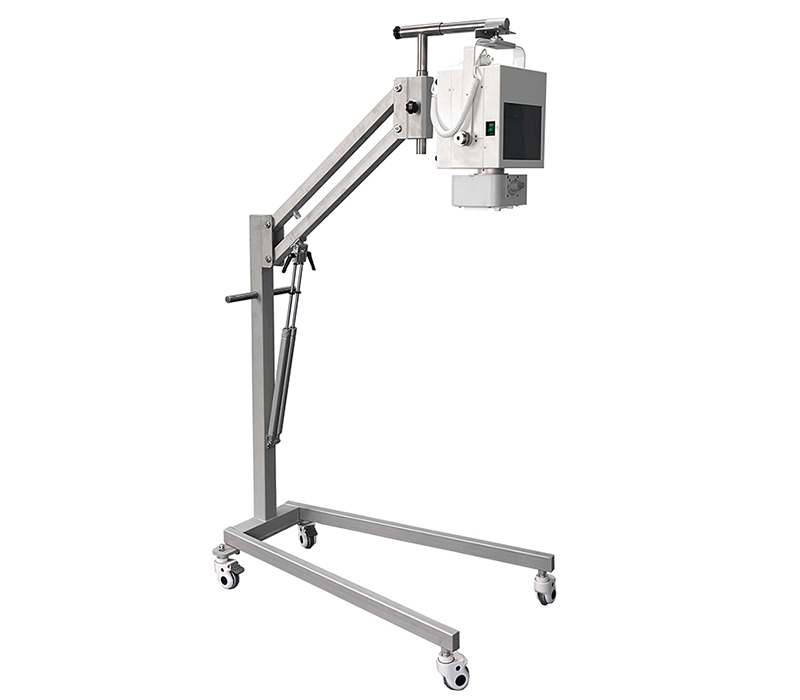

SMT-500D Portable X-ray machine

  • Details

  • Parameters

  • Features

    ◆Easy Exposure interface
    ◆Hand switch and visual console
    ◆Fast work flow
    ◆High-frequency inverter technology
    ◆Automatic measurement of shooting distance and thickness
    Features

Specifications

Ambient Conditions

Ambient temperature 10℃~40℃
Relative humidity 30%~75%
Atmospheric 70~106kPa



Portable Monoblock X-ray Unit

Output power 5.0KW
Frequency 100KHZ
Current 10~100mA
Voltage 40~120KV
mAs 0.1~100mAs
Exposure time 1~2000ms
Intelligent protection system It has self-protection system. It will give an alarm and check fault code.



Collimator

Type Manual Collimator
Max. Window 440mm×440mm(SID=100cm)
Lamp AC/DC24V、5W
Lamp timer Automatic illumination with timer for lamp(30S)
Inherent filtration 1.0mmAl
Illuminant LED
