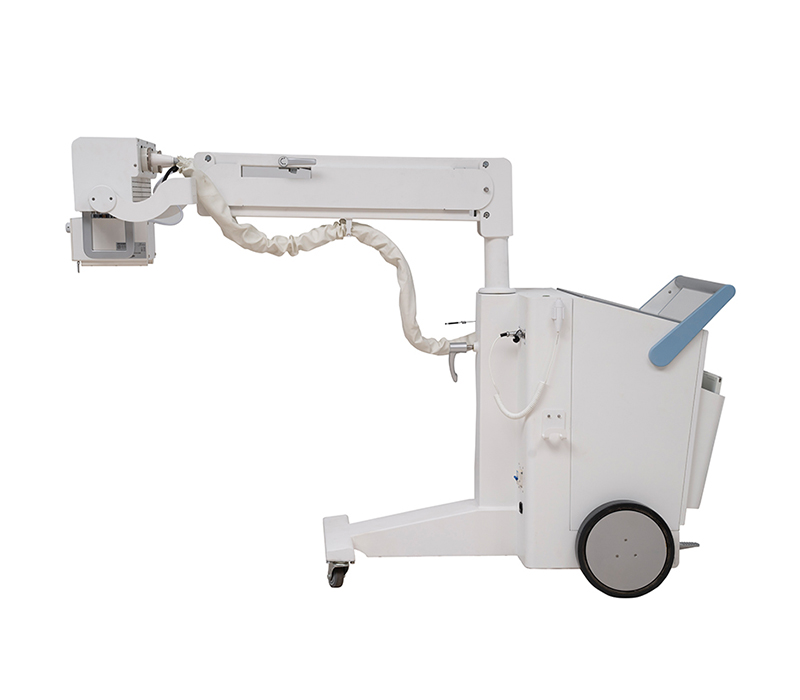

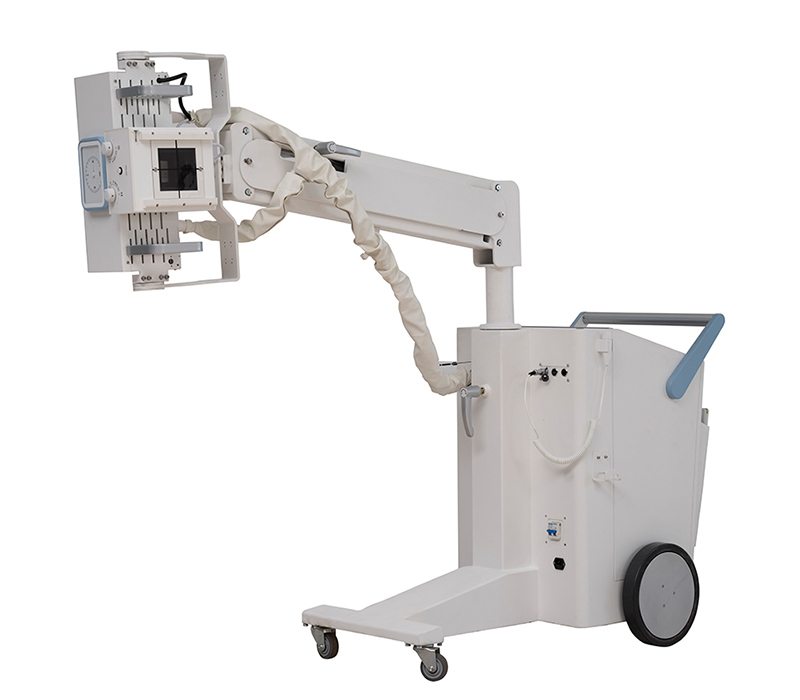

SMT-3200MD Mobile Digital Radiography X-ray System

The machine is Combined X-ray photography of medical diagnostic equipment, application for wards, emergency rooms, operating rooms, ICU, etc. It can be used for human body head, limbs, chest, waist and abdomen and many other parts. It provides finest image resolution through Flat Panel detector. Easy operations make the work efficient.
  • Parameters

Specifications

Ambient Conditions

Ambient temperature 10℃~40℃
Relative humidity 30%~75%
Atmospheric 70~106kPa



X-ray Generator

Output power 32KW
Frequency ≧200KHZ
Current 10~400mA
Voltage 40~125KV
mAs 0.1~320mAs
Exposure time 1ms~10000ms
Intelligent protection system It has self-protection system. It will give an alarm and check fault code.





X-ray Tube

Anode type Rotating Anode
Focal Spot value 1.0mm /2.0mm
Power of focal spot 21kW/42.5kW
Maximum voltage 125KV
Revolving speed of anode 2800rpm
Inherent filtration 1.5mmAl
Anode heat storage capacity 100kJ(140kHU)
Heat storage capacity 900kJ(1270kHU)
Anode angle 16°
Maximum anode heat dissipation 475W (40 kHU/min)



X-ray detector (Flat Panel Detector)

Type Amorphous Silicon WIFI connection
Scintillator Cesium Iodide
Active Area 14x17Inch(35cm*43cm)
Active Pixel 2304*2800
Pixel Pitch ≦150μm
A/D Conversion 16bits
DQE ≧70%
Spatial Resolution 36Lp/cm
Acquisition time ≤2S
AED function Equipped



Collimator

Type Manual Collimator
Max. Window 440mm×440mm(SID=100cm)
Lamp AC/DC24V、5W
Lamp timer Automatic illumination with timer for lamp(30S)
Inherent filtration 1.0mmAl
Illuminant LED





The tube bracket structure

X-ray tube support way Folding arm
Tube focus distance to the ground 480㎜~1800㎜,±5%
Arm’s Folding Range -45~+45°
Tube Tilting Angle ±90°
Tube Vertical Rotation Angle 360°
Collimator axial rotation ±360°



Digital image workstation

Display size 19 inch LCD touch screen
Display screen Maximum resolution 1280*1024
CPU ≥2.0GHz
Memory ≥2GB
HDD ≥320GB
OP System 64 bit Windows operation system
DICOM3.0 Query for integration with any PACS
Functions Patient registration: acquisition, find the patient data, to prepare for the photography
  Radiographic examination:setting system parameters, exposure photography and get the image
  Images display, image analysis, image processing and output
  Data management: managing patient data, leading in, leading out, batch file, etc in accordance with DICOM 3.0
  Configure calibration: the system components such as flat-panel detector, such as tube for automatic configuration and calibration
