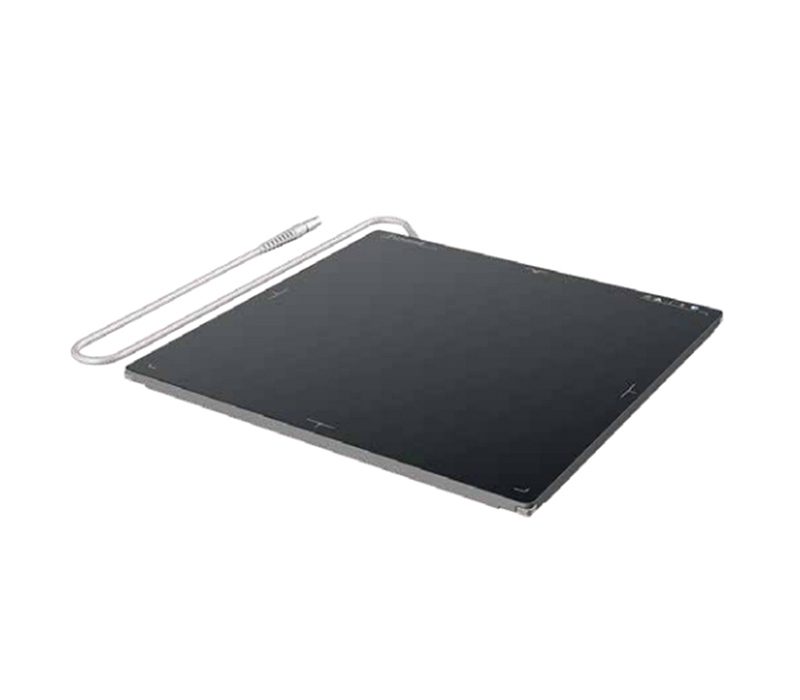

SMT-1717X 17_17 Digital Wired Flat Panel Detector

17*17 Digital Wired Flat Panel Detector
  • Parameters

Specifications

Detector Technology: Amorphous Silicon

Scintillator: CsI

Active Area (inch): 17 x 17

Pixel Matrix: 3072×3072

Pixel Pitch (μm): 139

Spatial Resolution(lp/mm): 3.6

AD Conversion (bit): 16

Data Transmission: GigE

Trigger Mode: AED (Optional) /Software / Prep

Preview Image Time (s): 3

Full Image Time (s): 5

Dimensions (mm²): 460x460x 15

Weight (kg): 4

Power Dissipation (W): 30

Operating Temperature (C): 5~35

Storage & Transport Temperature with Package (°C)L -10~55

Operating Humidity (% RH):30~80(Non-Condensing)

Storage & Transport Humidity with Package(% RH): 10~90(Non-Condensing)
