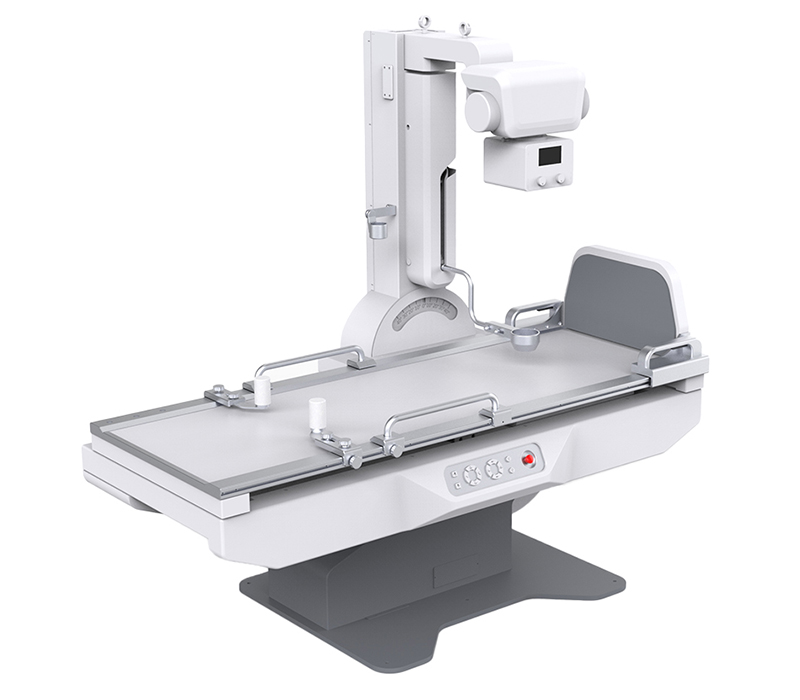

SMD-8500 Dynamic Digital Radiography and Fluoroscopy System

Suntra Multi-purpose R/F System is a flexible and compact system with various functions such as radiography, fluoroscopy, stomach examination, gastrointestinal tract examination, etc. Its wide-range movements and auto DR operations reduce the patient movements and make the operation easier and faster.

Fluoroscopy: Dynamic a-Si flat panel detector is designed for real-time imaging. The 17×17-inch image sensor has direct deposition CsI , which provides excellent low-dose imaging at frame rates up to 30 fps. IND is a digital fluoroscopic X-ray system, which can be used in both general radiography, fluoroscopy for gastrointestinal, urolog applications.

Radiography: Retractable tube arm, max SID is 1800mm. It could provide digital radiography of various body parts without blind area.
  • Details

  • Parameters

  • Features

    ◆High-performance and high-capacity with big focus and high speed, which is suitable for long-time diagnosis.

    ◆High inverting frequency and high voltage generator ensures output of constant DC.

    ◆Dynamic flat panel detector brings digital radiography and fluoroscopy of various positions directly.

    ◆ Strong and weak electricity separation and excellent EMC characteristics.

    ◆High density grid further improves X-ray quality and provides images with good effect.

    ◆Designed for low-dose fluoroscopic imaging
    Features

Specifications

Ambient Conditions

Ambient temperature 10℃~40℃
Relative humidity 30%~75%
Atmospheric 70~106kPa



X-ray Generator

Output power 50KW
Frequency 500kHz High frequency with inverter technology
Current (fluoroscopy) 0.5~6.0mA
Voltage (fluoroscopy) 40kV~125kV
Current (radiography) 10mA~630mA
Voltage (radiography) 40kV~150kV
Exposure time 1~6300ms
mAs 0.1mAs~630mAs



X-ray Tube

Anode type Rotating Anode
Focal Spot value 0.6mm /1.2mm
Maximum voltage 150KV
Revolving speed of anode 2800rpm
Inherent filtration 1.0mmAl
Anode heat storage capacity 300kHU
Maximum cooling rate of anode 750W
Housing heat storage capacity 900kJ



X-ray detector(Flat Panel Detector)

Type Amorphous Silicon
Scintillator Cesium Iodide
Active Area 17x17Inch(43cm*43cm)
Active Pixel 3072 × 3072
Pixel Pitch 139um
Limiting resolution 36Lp/cm
Data acquisition time ≤2s





Collimator

Type Electric and multileaf collimator
Power 150W; 24VAC 1
Lamp timer Automatic illumination with timer for lamp(30S)
Filtration 1.2mmAL



Mobile patient table

Type Table for gastrointestinal imaging
Tabletop lateral movement 240mm(-120mm~+120mm)
Rotating range -20°~+90°



Mechanical movement

SID 1000mm~1800mm
Detector Cassette movement 1100mm



Workstation

CPU Intel i5
Memory 8GB
HDD 500GB
Monitor 24’’LCD
DICOM3.0 Query for integration with any PACS
Functions Import/export function
Image info
Management of patient info
Post processing
Measurement etc.





Configurations

1 50kW High-voltage X-ray Generator One set
2 X-ray Tube One set
3 Collimator One set
4 17*17 inch Dynamic Flat Panel Detector One set
5 High-voltage Cables One set
6 Grid One set
7 Radiography/Fluoroscopy Table (Motor-driven) One set
8 Image Capturing and Processing Software One set
9 Computer One set
10 24 inch LCD Monitor One set
11 Hand Switch One set
12 DICOM 3.0 One set
13 Manual One set
